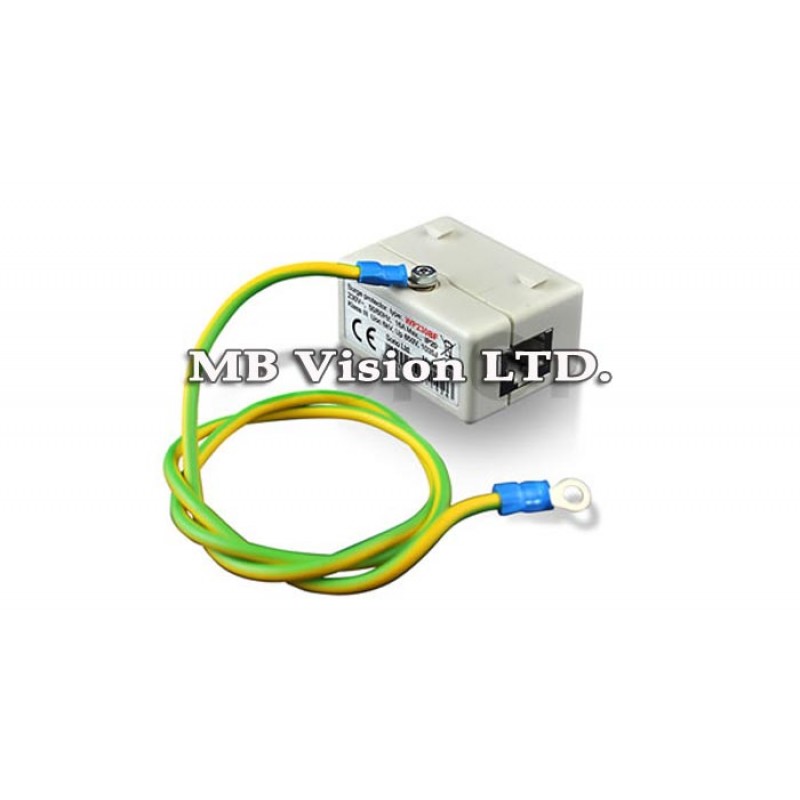

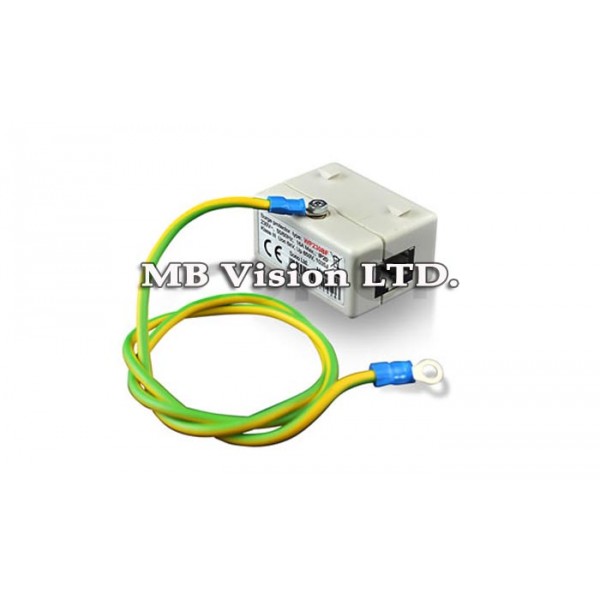

Surge protector for computer networks LAN (1O/100 Base). Possibility of multiplication and protection of several ports with one connection to grounding. Shielded RJ-45 jacks. Compact and easy to use.
Portable LAN surge protector for laptops, desktops, servers, routers and all network devices with a RJ45 connection port.
-SPD class Type 3
-Max. continuous operating voltage (d.c.) Uc 5.8 V
-Nominal discharge current(8/20 μs)line-line In 50 A
-Nominal discharge current(8/20 μs)line-PE In ~200 A
-Nominal discharge current(8/20 μs)shield-PE In 5 kA
-Voltage protection level line-line Up <15 V
-Voltage protection level line-PE Up <650 V
-Voltage protection level shield-PE Up<850V(for 1kV/µs)
-Data Rate 100 Mb/s
-Connectors RJ45 shielded socket/RJ45 shielded socket
-Data line protected Pin 1/2, 3/6
-Test standards IEC 61643-21
-Degree of protection IP 20
-Part No. 130 203
-Dimension / tare weight 85x62x26mm/0.115kg
