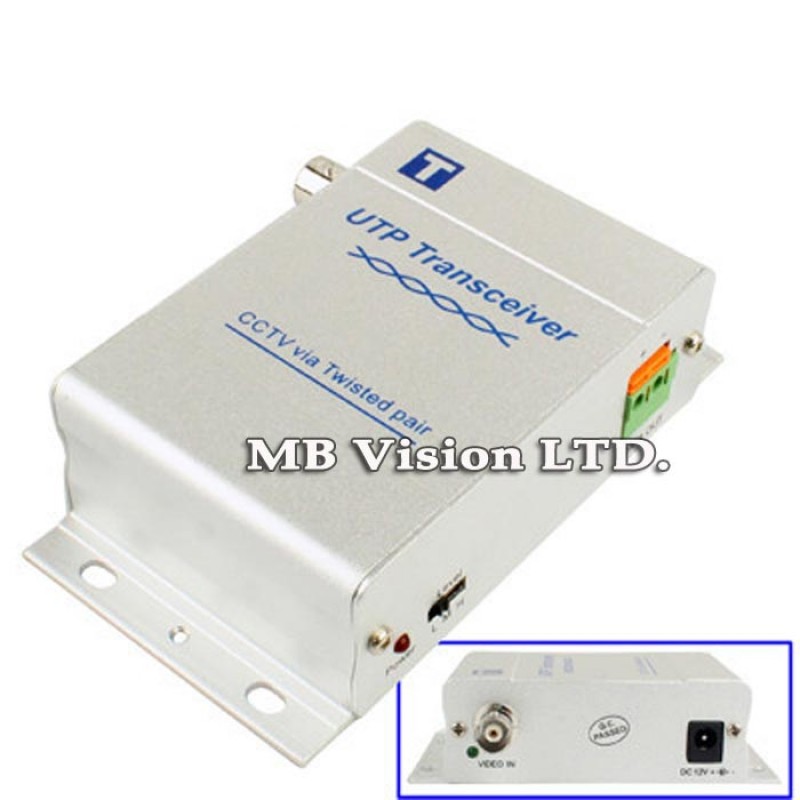

1ch active video balun - transmitter

Click Image for Gallery

Brand: MB Vision
Product Code: CNW802T
Availability: Out Of Stock

30.25 лв. Ex Tax: 25.21 лв.

Qty: Add to Cart

Add to Wish List Add to Compare

Description Reviews (0)

Features:

Power AC/DC 12-24V
Full motion CCTV video at long distance(Max.4,000ft/1500M)
Built-in linearity, Sharpness and Chroma control
Enable unparalleled common interferences rejection
Built-in transient Protection.
Improve the picture definition when connect to DVR or Quad,and reduce noise affects

Single active twisted pair transmission,
Effective transmission distance 1500M

UTP Video Balun
1 Channel active video balun
Capable of receiving and transmitting video signal via UTP cable

Specification	1CH Active Video Transceiver
Video	Frequency responseDC-6Mhz Common-mode/Differential-mode Rejection15Khz 6Mhz 60dB type
Audio/data	NO
Power	12V DC
Impedance	Coax,male BNC75 UTP(Screwless)Terminal Block or UTP RJ45 Data Connector100 ;
Wire type	One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signalDC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression	6000V 1.2 S*5 S
Control	Brightness and Sharpness
UTP Port	Terminal Block
Dimensions(mm)	818229mm
Weight(g)	100
Environment	Temperature-10 +50 Humidity0~95%
