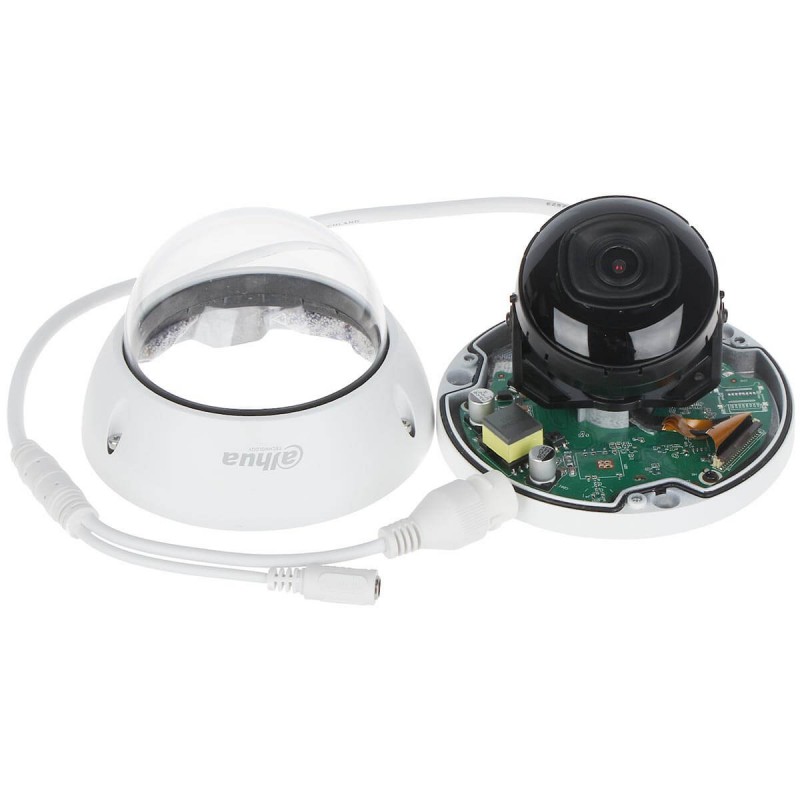

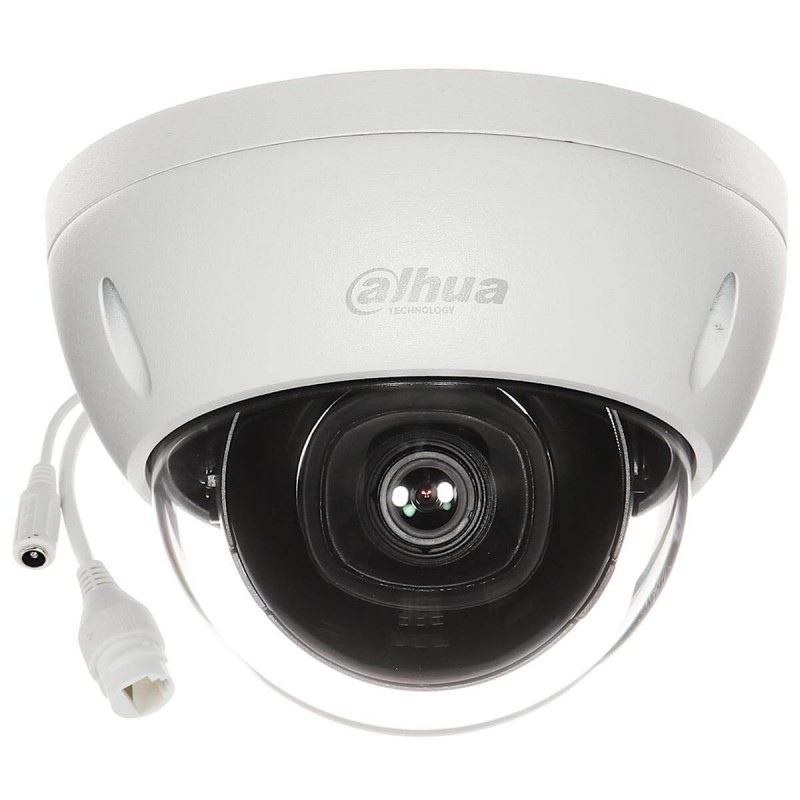

5MP IP Dahua IPC-HDBW1530E-0280B

Dahua IPC-HDW5241TM-ASE-0280B | WizMind

5MP IP Dahua IPC-HDBW1530E-0280B

• Standard:     TCP/IP
• Sensor:     1/2.7 " Progressive Scan CMOS
• Matrix size:     5 Mpx
• Resolution:     2880 x 1620  - 5 Mpx ,

        2688 x 1520  - 4 Mpx ,
        2560 x 1440  - 3.7 Mpx ,
        2048 x 1536  - 3 Mpx ,
        2304 x 1296  - 3 Mpx ,
        1920 x 1080  - 1080p ,
        1280 x 960  - 1.3 Mpx
        1280 x 720  - 720p

• Lens:         2.8 mm
• View angle:

        106 ° (manufacturer data)
        100 ° (our tests result)

• Range of IR illumination:     30 m
• Image compression method:     H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Alarm inputs / outputs:
• Audio:
• Main stream frame rate:     20 fps @ 5 Mpx

          25  @ 4 Mpx

• Network interface:     10/100 Base-T (RJ-45)
• Network protocols:     IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast
• WEB Server:     Built-in
• Max. number of on-line users:     20
• ONVIF:                 20.06
• Main features:

        D-WDR - Wide Dynamic Range
        3D-DNR - Digital Noise Reduction
        ROI - improve the quality of selected parts of image
        BLC - Back Light Compensation
        HLC - High Light Compensation (spot)
        ICR - Movable InfraRed filter
        AGC - Automatic Gain Control
        Auto White Balance
        Mirror - Mirror image
        Motion Detection - max. 4 zones
        Privacy zones - max. 4
        Sharpness - sharper image outlines

• Power supply:

        PoE (802.3af),
        12 V DC / 510 mA

• Power consumption:     ≤ 4.5 W @ 12 V DC ,

     ≤ 5 W @ PoE (802.3af)

• Mobile phones support:     Port no.: 37777 or access by a cloud (P2P)
• Android: Free application DMSS
• iOS (iPhone): Free application DMSS
• Default IP address:     192.168.1.108
• Default admin user / password:     admin / -
• The administrator password should be set at the first start
• Web browser access ports:     80, 37777
• PC client access ports:     37777
• Mobile client access ports:     37777
• Port ONVIF:     80
• RTSP URL:     rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream

  rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream

• Housing:     Dome - Metal
• Color:     White
• "Index of Protection":     IP67
• Vandal-proof:     IK10
• Operation temp:     -40 °C ... 60 °C
• Weight:     0.36 kg
• Dimensions:     Ø 110  x 81 mm
